2001-2004 Chevrolet Corvette Windshield Replacement

2001 Chevrolet Corvette Windshield Replacement

The Chevrolet Corvette or Vette is an iconic sports car from General Motors.  Also known as “America’s sports car”, the Corvette’s first Chevrolet Corvette Logoproduction run was in 1953 and has been in production since.

Chevrolet Corvette Windshield Replacement

There are a few options for replacement windshields. On this particular model, 2001 Chevrolet Corvette Z06 there is a option for a Heads-up display.

In 2001, there are three body styles:

  • 2 Door Convertible
  • 2 Door Coupe
  • 2 Door Hardtop

All three require a different replacement windshield. It can be difficult to tell the difference between the coupe and the hardtop. The hardtop (Z06 only comes in this version) has no removable roof. The coupe has a removable roof section. (I call it a removable roof section because “removable hardtop” make it more confusing)

2001 Chevrolet Corvette Windshield Replacement

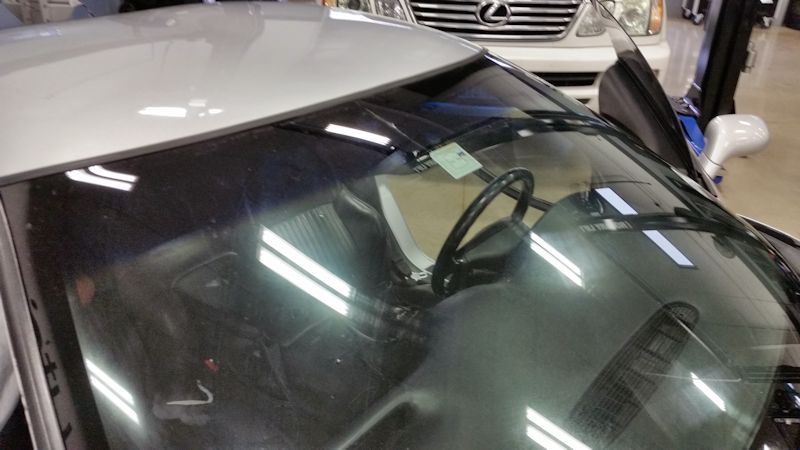

As you can see there is a solid roof line with no removable top.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

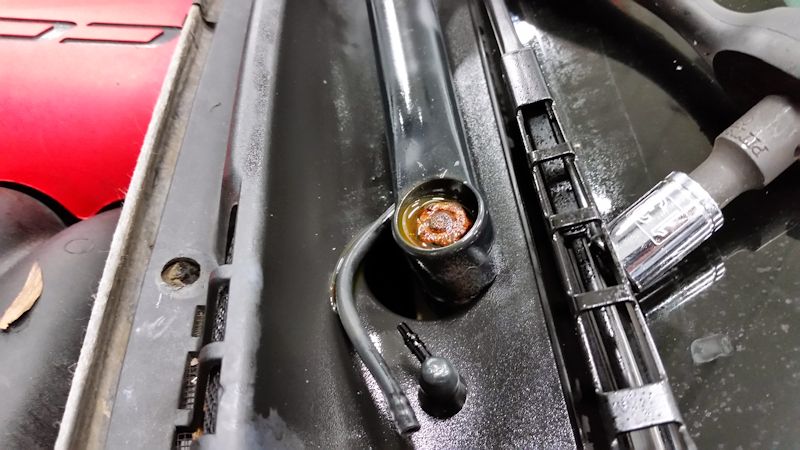

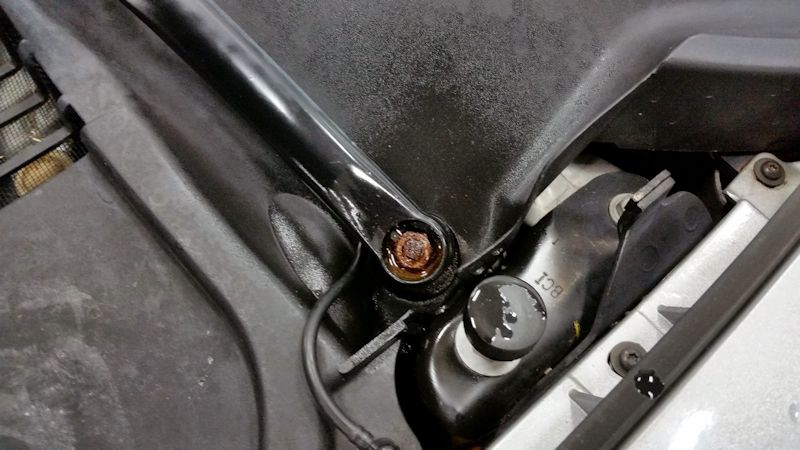

Like all proper windshield replacements, you must first remove the cowl and the windshield wipers. The windshield wiper fluid hose runs through the cowl and into the wiper arm. Disconnect before removing wiper arm.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacemen

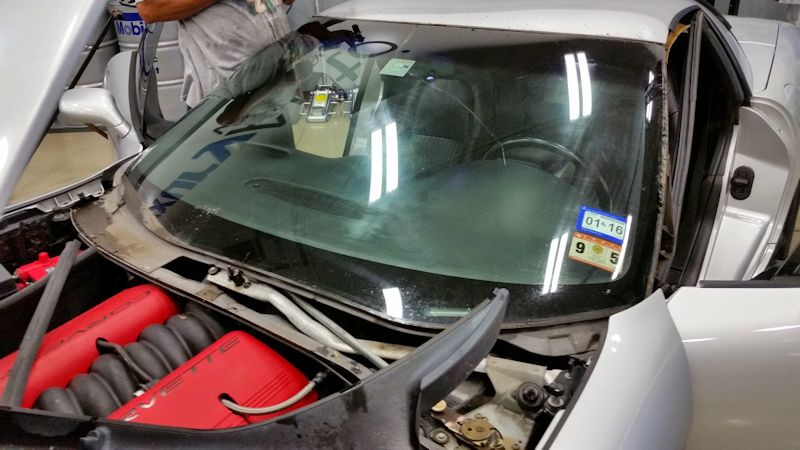

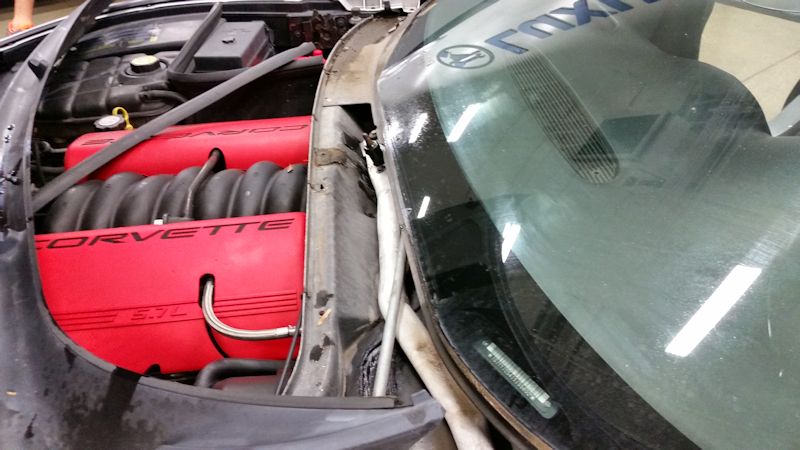

With the cowl removed, you have clear access to the bottom of the windshield.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

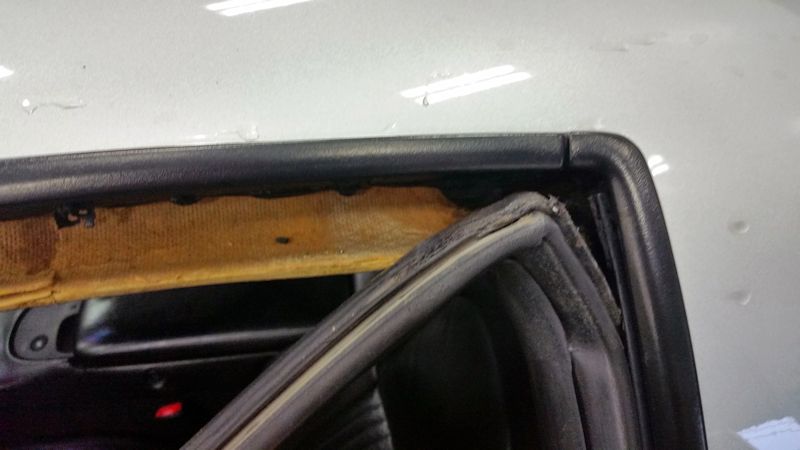

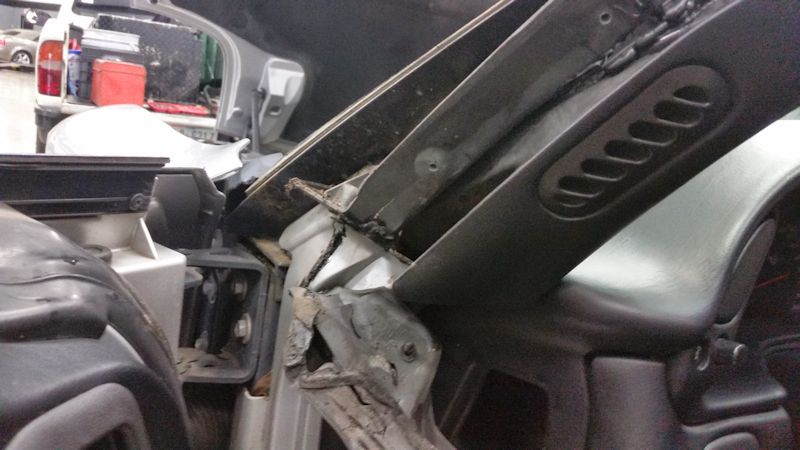

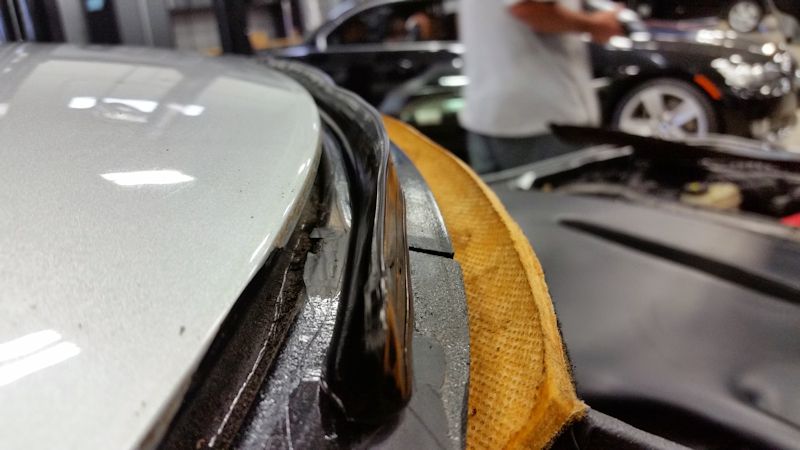

Pull down the rubber door seal around the door frame and down the A-pillar to expose the windshield A-pillar trim. The trim is held in place by a series of phillips screws. There is a weak putty-type filler between the trim and the frame used to help seal out water. As you can see from the photos, there is water damage to the headliner from a leak. This is a factory windshield that has never been replaced.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

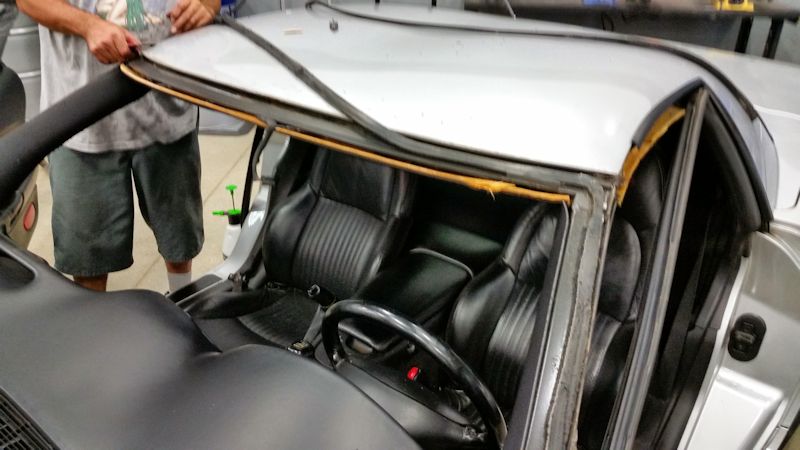

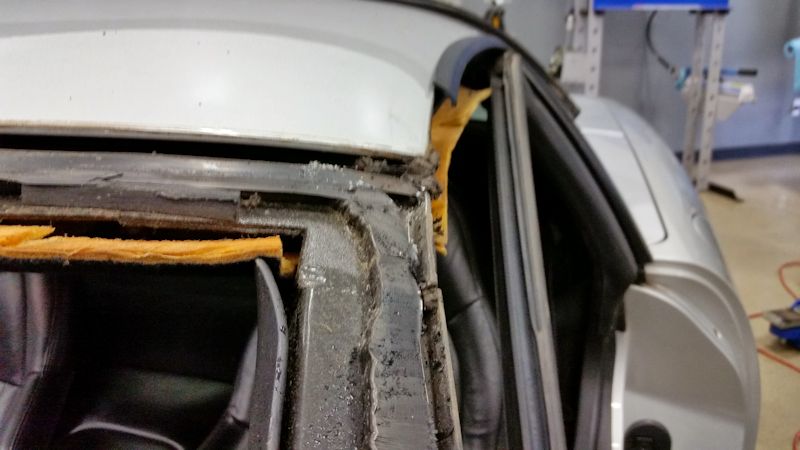

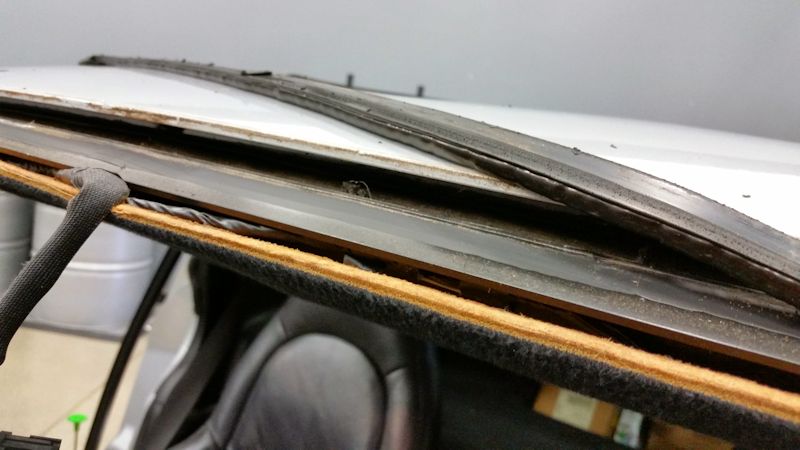

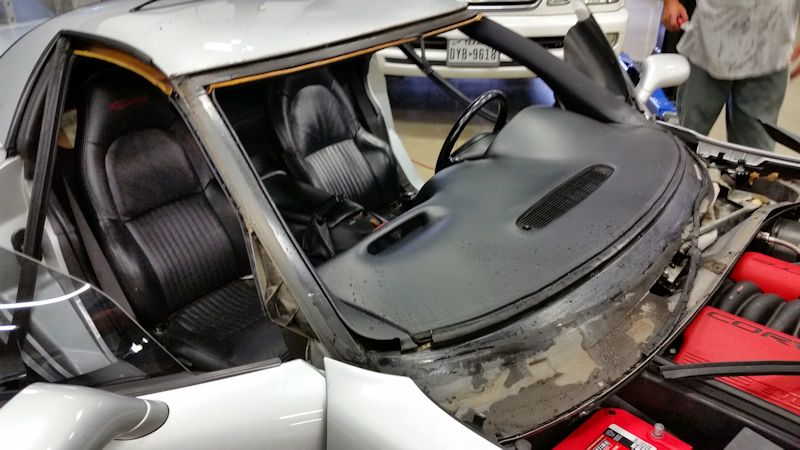

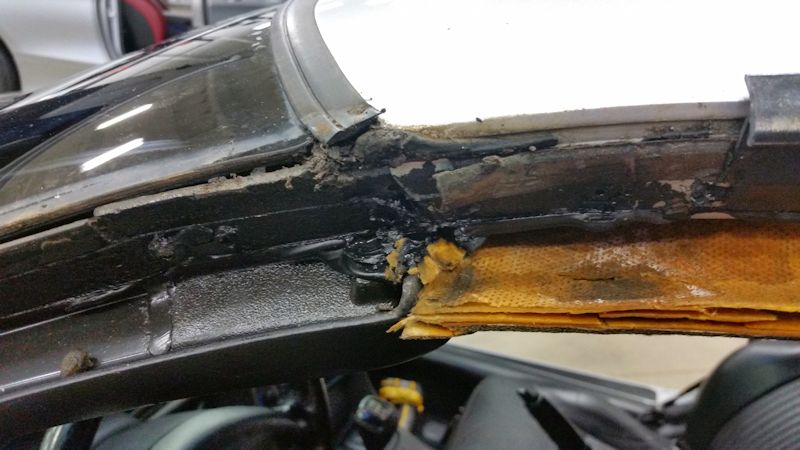

After all the trim is removed the windshield can be cut out. Once the windshield is out, trim all but about 2 millimeters of existing urethane from the pinch-weld.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

Apply the windshield primer to all exposed paint and scratches and allow to dry.

2001 Chevrolet Corvette Windshield Replacement

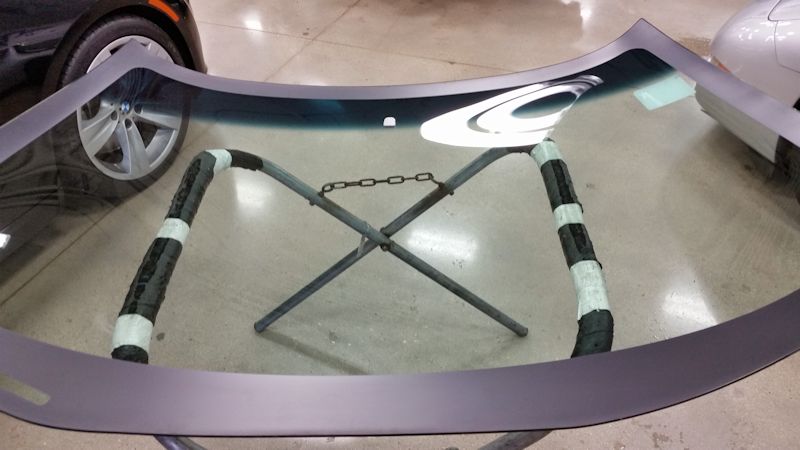

Clean and prep the new replacement windshield and ensure all contaminates are removed.  Install the new top strip molding to the windshield while on the rack prior to installation.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

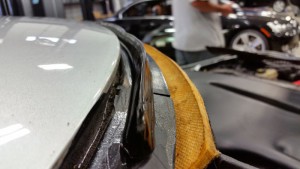

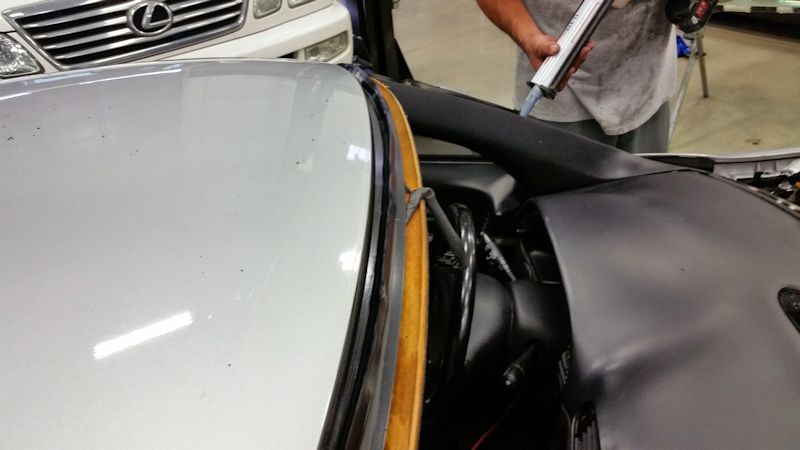

Apply a V bead of urethane to the pinch-weld. Make sure the height and size of the bead is consistent with the manufactures specs. Set the windshield and ensure proper spacing and repeat previous steps to put everything back together.

2001 Chevrolet Corvette Windshield Replacement 2001 Chevrolet Corvette Windshield Replacement

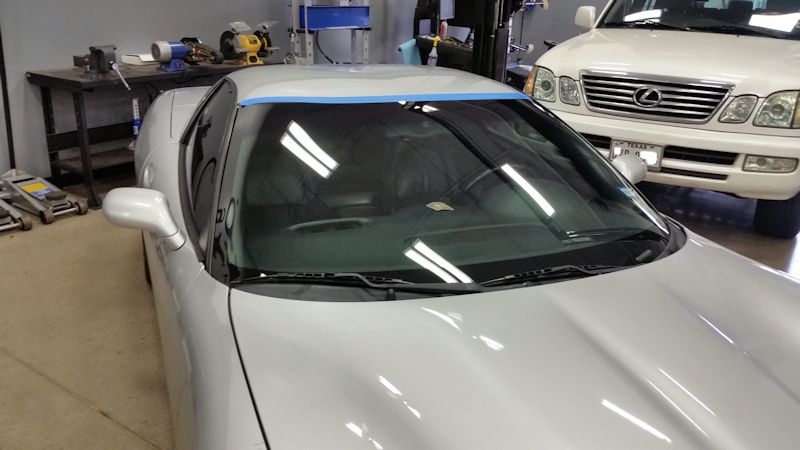

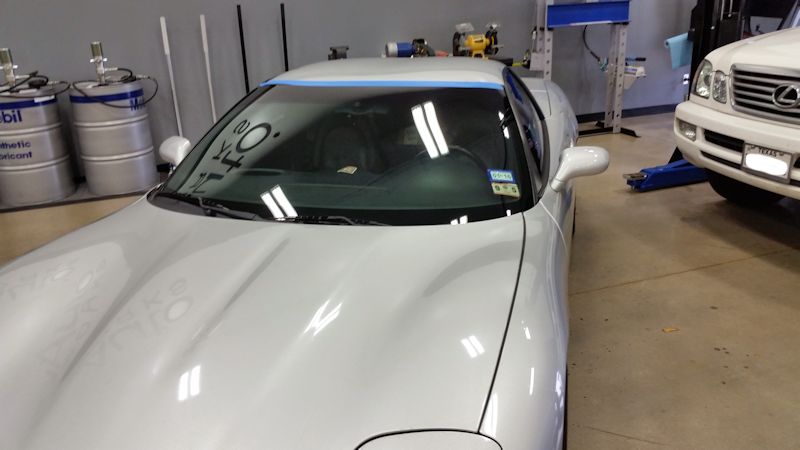

Place a strip of painters tape across the top of the windshield (or two vertical strips, one on each side) to ensure the windshield sets properly. The tape can be removed after 8 hours.

Chevrolet Corvette Windshield Replacement Service locations:

Abbey Rowe Auto Glass – The Right Way, Right Away.

If you do need Auto Glass Replacement, Abbey Rowe Auto Glass has you covered.

  • We will provide a free mobile service.  All of our service trucks are “mobile shops” fully equipped to handle any Auto Glass Replacement in the field.
  • Lifetime warranty that covers the installation and workmanship.
  • OEM (Original Equipment Manufacturer) and OEE (Original Equipment Equivalent) parts
  • Professional installers
  • We work directly with all major insurance companies
  • All forms of payment accepted. Debit/Credit, Cash or Check




Discussion (2)

  1. Can you tell me what the dimensions are and weight is for a 97-04 Coupe windshield excluding heads-up display?
    Also same information needed for a 97-04 Conv windshield without heads-up display?

    • The dimensions or “block size” for the coupe and convertible are the same with or without the Heads-up display.
      40.3in X 63.6in. The weight is the same as well. However, they are not interchangeable.
